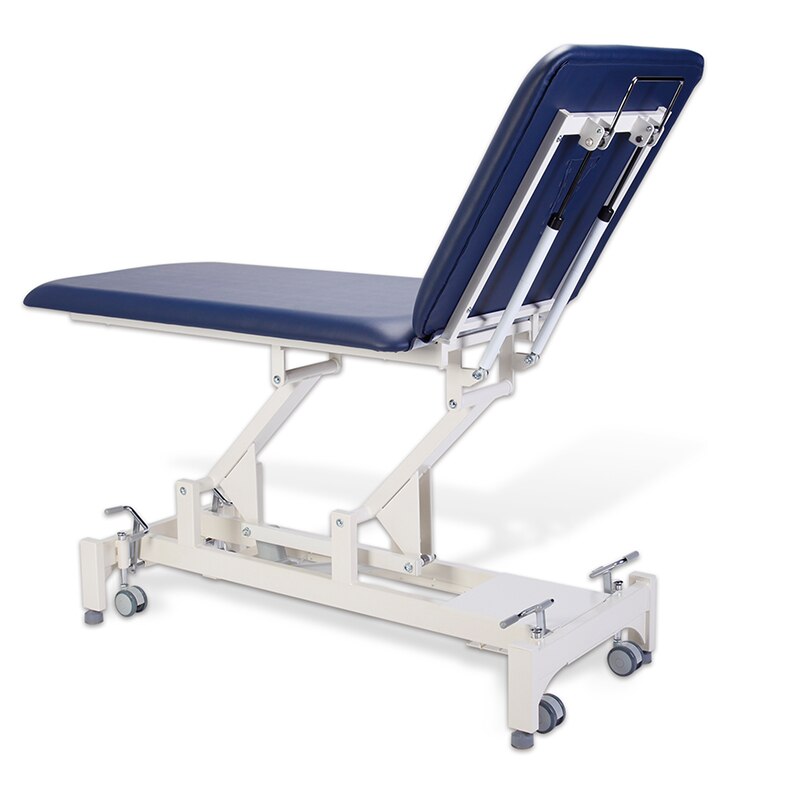

Classic 2-Section Electric Treatment Table – Hi-Lo Therapy Table

Professional Adjustable Therapy Table for Physical Rehab and Treatment Rooms

The Classic 2-Section Treatment Table is a premium electric hi-lo table designed for physiotherapy and rehabilitation professionals. Engineered for stability and ease of use, the single-piece frame for body and leg support ensures consistent comfort and performance.

• Electric motorized actuator for hi-lo height adjustment
• Hydraulic version available (Pre-order only)
• Twin oversized pillars enhance overall table stability
• Retractable castors on both ends for easy mobility
• Twin gas struts for secure and smooth head section movement
• 4-side elevating foot bars for convenient height control
• Maximum user weight capacity: 225 kg / 496 lbs
• Includes US plug – universal voltage: 100~240VAC

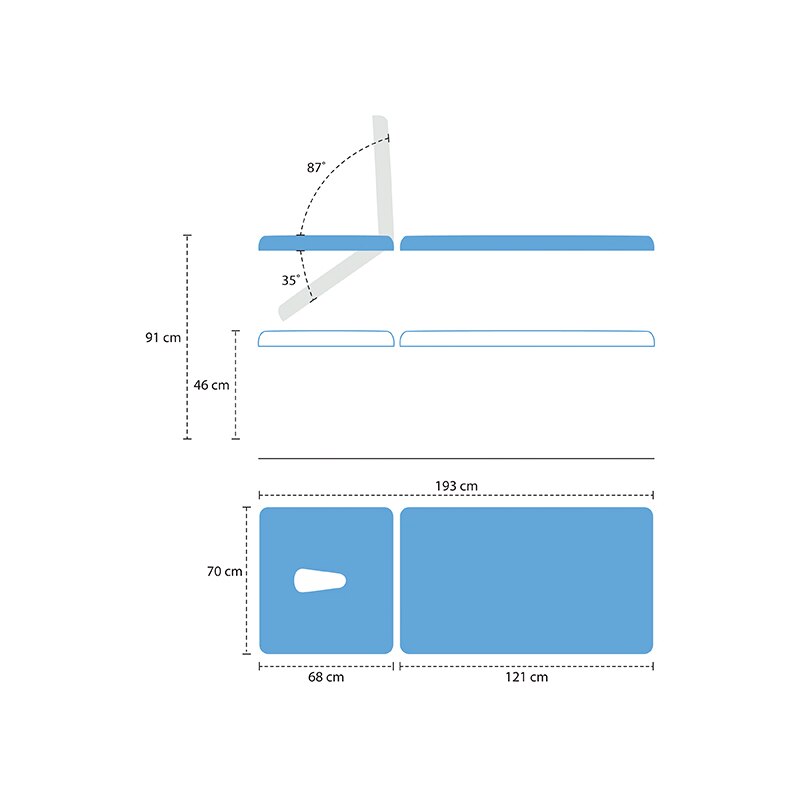

Dimensions and Specifications

• Min Height: 460 mm (18.11")
• Max Height: 910 mm (35.83")
• Table Width: 700 mm (27.56")
• Head Section: 685 mm (26.97")
• Leg Section: 1210 mm (47.64")
• Total Length: 1930 mm (75.98")
• Head Tilt: -35° to +87°
• Lift Mechanism: Electric
• Includes breathing hole with plug
• Retractable castors: 4 wheels
• Max load capacity: 225 kg / 496 lbs
• Product weight: 190 lbs
• Shipping dimensions: 88" x 32" x 22" (H)

Electrical Data

• Control Box Input: 100~240VAC, 50/60Hz
• Control Box Output: DC 32V, 80V
• Actuator Input Voltage: DC 24V
• Duty Cycle: Max 10% (2 min ON / 18 min OFF)
• Max Load: Push force 8000N
• Max Current: 6A

Certifications

Certified to international standards:

• AAMI ES 60601-1
• CSA-C22.2 NO. 60601-1
• IEC 60601-1
• EN 60601-1

Electrical components comply with IEC 60601-1 safety standards.

Warranty

3-year warranty on the frame. All other components including gas struts, upholstery, actuators, and controls are covered for 12 months from date of purchase.
