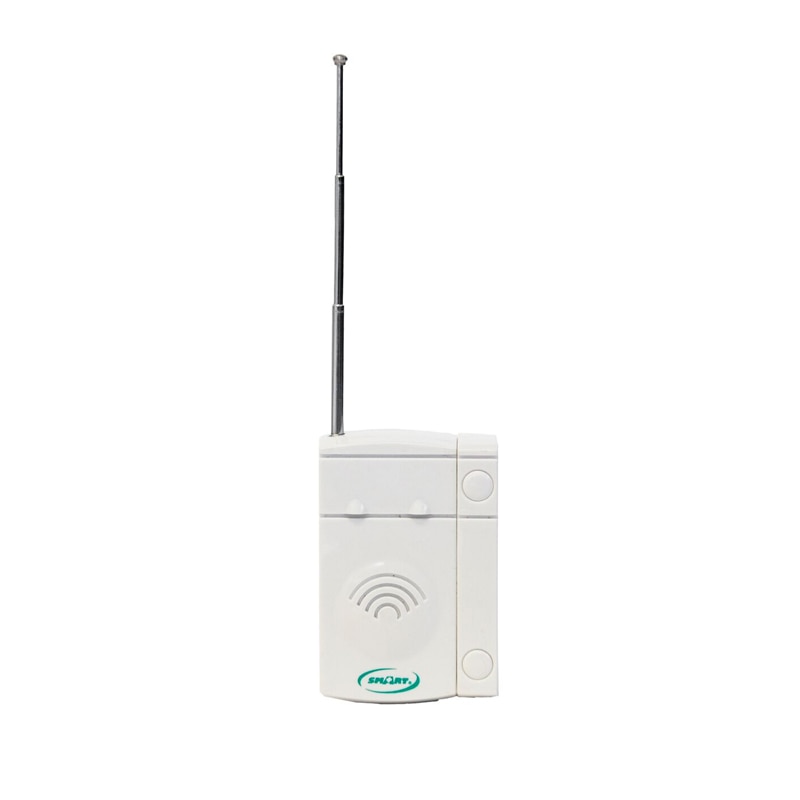

Window/Door Exit Alarm

The Window/Door Exit Alarm can be mounted to a window or door frame using the provided mounting hardware or adhesive tape. When the window or door opens and the contact magnet is separated from the sensor, a silent wireless signal is sent to the Economy Central Monitoring Unit/Pager or Economy CordLess Alarm to alert caregiver.

Cheat sheet 433-EC

1. Start with the 433-EC monitor in the OFF position.

2. Press and hold a paper clip or other small tool into the program buttonhole on the back of the monitor until the 2 outer LED lights in the red window flash, then turn solid red.

3. As soon as the lights turn solid red, remove the paperclip. The lights should stay solid red when you remove the paperclip.

4. Activate your component.

Example:

• Apply pressure to the bed/chair cushion for a few seconds, then release.

• Stand on the floor mat for a few seconds, then get off

• Turn on the motion sensor and wave in front of it (433-MS).

• Press and release the call button (433-NC).

• Separate the parts from the exit alarm (433-EXT).

5. If you have more than one component to program, repeat step 4 until all components are activated. If you have finished activating your components, continue to step 6.

6. Quickly press the paper clip into the program button and remove it, do not hold the paper clip into the program button. The top lights should flash and then turn off.

7. Test your products: Turn on the 433-EC monitor (CHIME mode) and activate your component.

**If programming a bed/chair cushion or floor mat, make sure the transmitter is turned on before programming**
