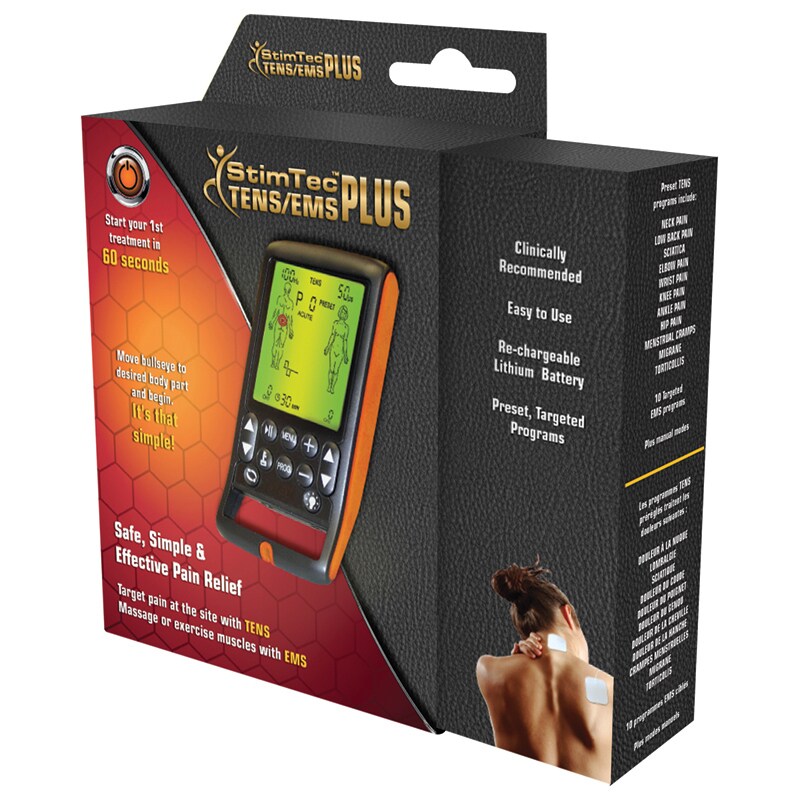

StimTec Plus TENS/EMS

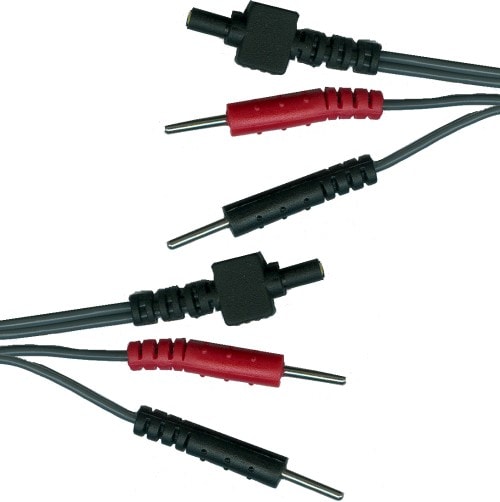

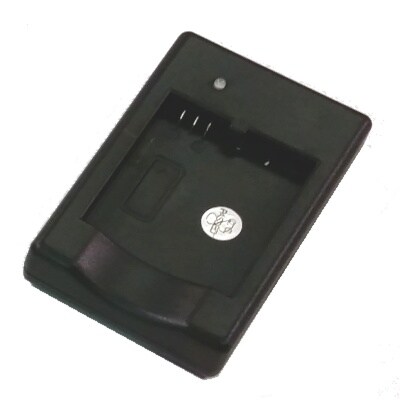

Comes with retail box and everything a patient needs to get started. • Simple to Use • Electrode Placement Guide • Re-chargeable Lithium Battery Contains: • 1 StimTecPLUS • Lithium battery • Battery charger • 4 electrodes • 2 Lead Wires • Carry Case • User guides • Belt clip Targeted TENS programs: NECK PAIN LOW BACK PAIN SCIATICA ELBOW PAIN WRIST PAIN KNEE PAIN (Chronic & Acute) ANKLE PAIN HIP PAIN MENSTRUAL CRAMPS MIGRAINE TORTICOLLIS Targeted EMS programs: TRICEPS LATISSIMUS DORSI SPINALIS MUSCLES GLUTEUS HAMSTRINGS CALVES BREAST ABDOMEN ABDOMEN+WAIST QUADRICEPS THIGHS Specifications: Channel Dual, isolated TENS: Program 0-13 --- TENS Preset programs Program 14-21 --- TENS Manual programs Intensity: 0-150mA zero to peak at 500ohm load Frequency 1-150 Hz Pulse width: 50, 60, 70, 80, 90, 100, 110, 120, 130, 140, 150, 160, 170, 180,190, 200, 210, 220, 230, 240, 250μs Waveforms: Symmetrical bi-phase rectangular, Asymmetrical bi-phase rectangular, Mono-phase rectangular Treatment timer: Continuous, 15, 30, 45, 60, 90min For EMS treatment: Program 22-31 --- EMS Preset programs Program 32, 33 --- EMS Manual programs Intensity: 0-150mA zero to peak at 1000ohm load Frequency: 1-120 Hz Pulse width: Positive phase: 50-400μs, in steps of 50μs Waveforms: Symmetrical Bi-Phasic rectangular, Alternated Bi-Phasic rectangular Ramp up time: 0-5s in steps of 1s Ramp down time: 0-5s in steps of 1s On time: 1-60s in steps of 1s Off time” 0-60s in steps of 1s Treatment timer: Continuous, 10, 20, 30, 45, 60, 90min

Not CSA approved
