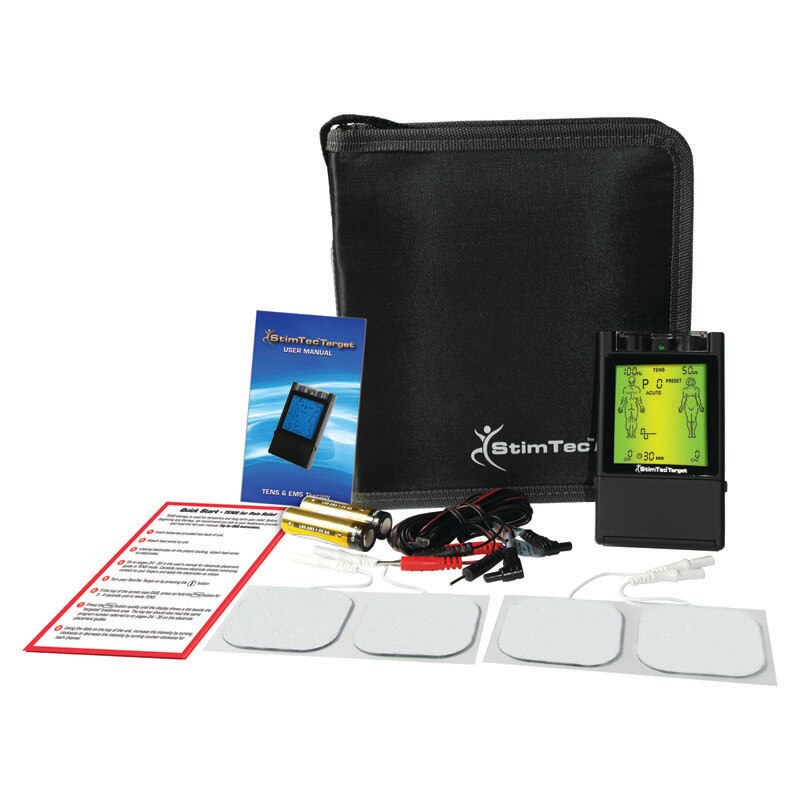

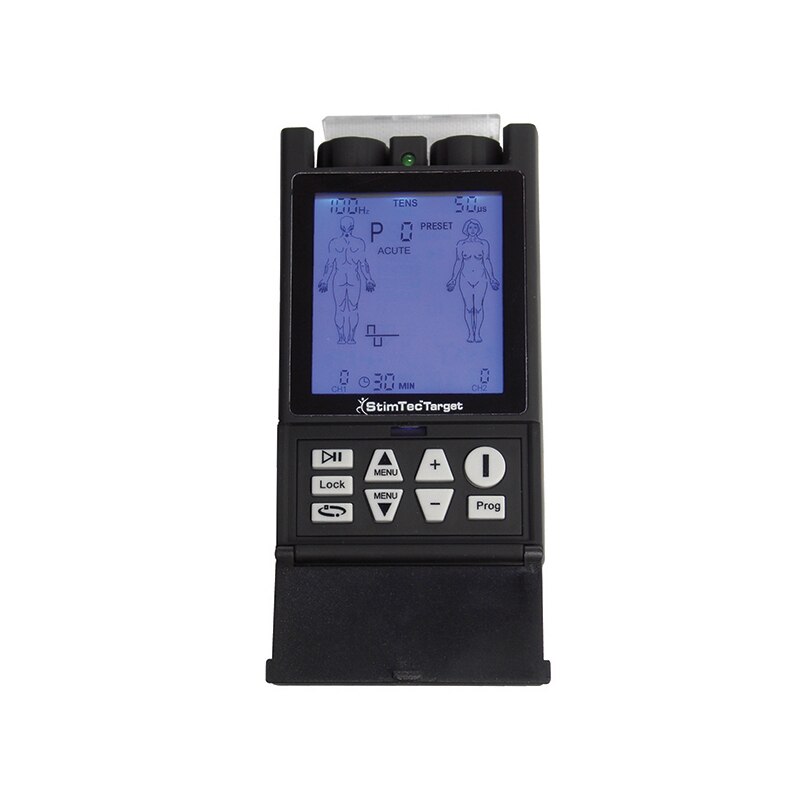

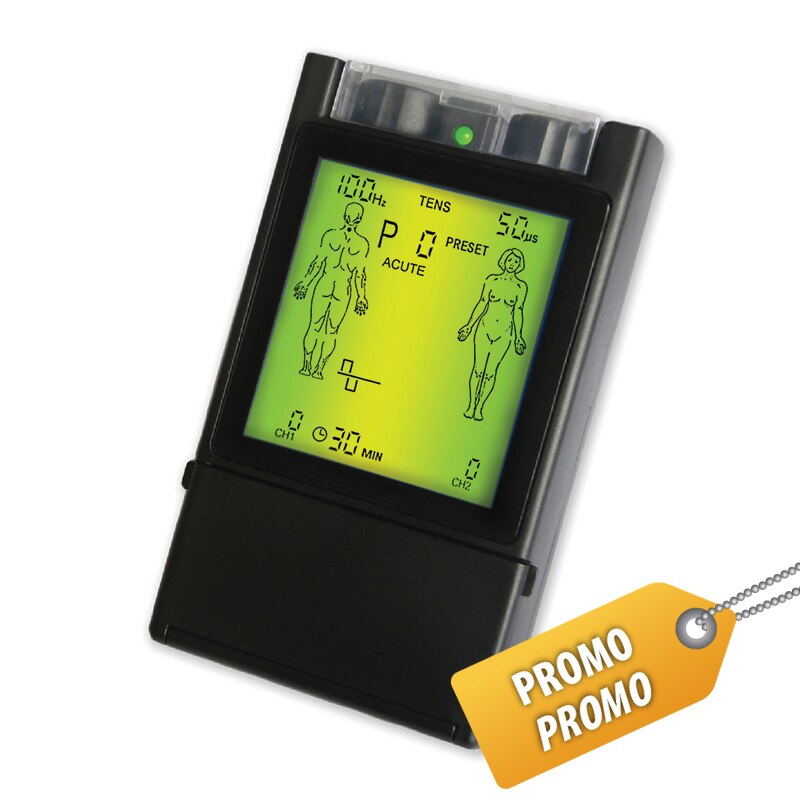

StimTec Target TENS-EMS Unit

Specifications • Channel: Dual • Output : Maximum 130 mA (peak value) across 500 Ohm load • Pulse Width: From 50μS to 400μS adjustable • Pulse rate: From 1Hz to 150Hz Adjustable • Waveform: Symmetrical Bi-phasic rectangular, Asymmetrical Bi-phasic rectangular, Monophasic rectangular and Alternated Bi-phasic rectangular • Ramp Time: 0-5 seconds, in steps of 1 second • On Time: 1-60 seconds, in steps of 1 second • Off Time: 1-60 seconds, in steps of 1 second 12 PRESET TENS programs + 8 MANUAL TENS Modes: The PRESET program apply a sequence of 3 sub-programs Ⓐ Ⓑ Ⓒ, optimized to treat the specific pain situation. The characters Ⓐ, Ⓑ or Ⓒ will flash, showing the phase in use or will be ON to show the completed phase. 12 Preset Modes: P0 - NECK pain P1 – TORTICOLLIS P2 – LOW BACK pain P3 – SCIATICA P4 – EPICONDYLITIS P5 – WRIST PAIN P6 – POST-SURGERY knee pain P7 – ANKLE sprain P8 – KNEE pain (gonalgia) P9 – HIP pain (coxalgia) P10 – MENSTRUAL pain P11 – NEURALGIA 11 PRESET EMS programs + 4 MANUAL EMS Modes P20 - Triceps; P21 - Latissimus dorsi; P22 - Spinalis; P23 - Gluteus; P24 - Hamstrings; P25 - Calves P26 - Breast; P27 - Abdomen; P28 - Abdomen + Waist; P29 - Thighs Lock Button Flip cover protects any buttons from being accidentally pushed, plus “LOCK” button locks program settings even if the battery is removed! Large LCD Screen Large, lighted display makes settings easy to read Target Treatments Toggle to the body part, set acute or chronic and the “Target Treatments” are preset for you. Electrode Placement Guide User friendly instruction guide shows exactly where electrodes should be placed for each part of the body.
